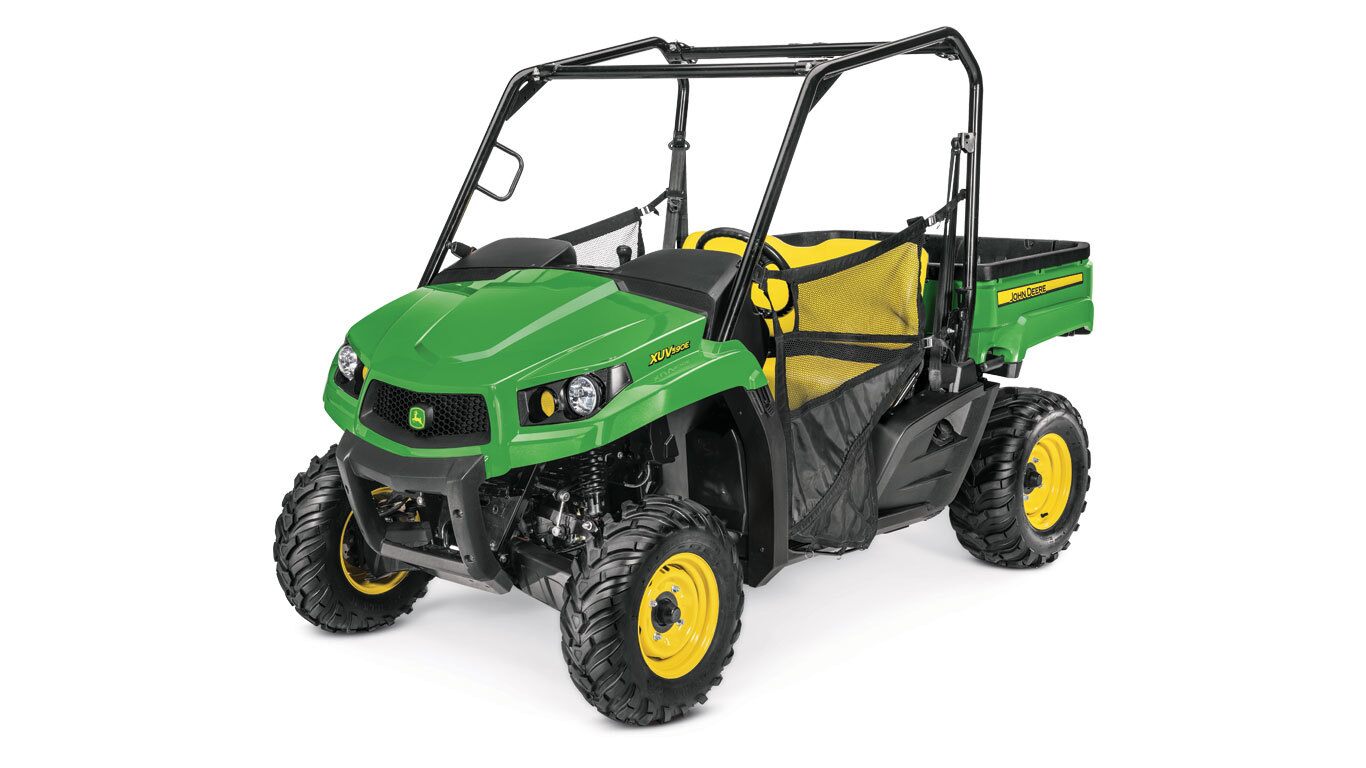

XUV590E UTILITY VEHICLE

Crossover Utility Vehicle

  • Four-wheel independent suspension for excellent ride and handling
  • Balanced acceleration and top speed
  • Quiet and comfortable operator station

Apply For Financing


View Product Brochure



Features



586-cc (35.8-cu in.) gasoline engine586-cc (35.8-cu in.) gasoline engine
RadiatorRadiator

The Gator™ XUV590E and XUV590M Crossover Series Utility Vehicle is powered by a 586-cc (35.8-cu in.), inline twin-cylinder, electronic fuel-injected (EFI) gasoline engine. The engine is electronically controlled through an engine control unit (ECU) to ensure optimal engine performance.



The engine offers the following performance and reliability features:

  • 23.8 kW (32 hp*) at 5600 rpm
  • 77 km/h (48 mph) top speed
  • Electronic fuel injection (EFI) with engine control unit (ECU)
  • Liquid cooled
  • Designed for cold-weather starting (tested to -28.9°C [-20°F])
  • Wet-sump lubrication system
  • Spin-on oil filter and oil pan drain accessible through skid plate for easy servicing
  • High air-flow air filter
  • 875-W (65 maximum amp) charging system for accessory capability (see engine section for alternator output curve)
  • Spark-arresting muffler is United States Forest Service (USFS) approved
  • Low fuel consumption and large 28-L (7.4-U.S. gal.) fuel tank
  • Environmental Protection Agency (EPA) and California Air Resources Board (CARB) compliant



* The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

Instrument panel and backlit switchesInstrument panel and backlit switches
Sealed under-hood storageSealed under-hood storage
Ergonomically placed controlsErgonomically placed controls
In-dash cup holders and sealed glove boxIn-dash cup holders and sealed glove box
S4 optional under-seat storageS4 optional under-seat storage
  • Operator-centric design provides class-leading ergonomics and comfortable seats
    • Easy entry/exit and pass through for operator and passenger
    • Optimal seating position provides more legroom
    • Automotive-like ergonomics
    • Excellent comfort while driving
  • Best-in-class sealed storage volume of 34 L (9 gal.) with a large in-dash glove box and under hood storage. An additional 34 L (9 gal.) of under-seat storage is available on the S4 models.
  • Hinged hood rotates open without tools for access to storage
  • Side-by-side seating provides ample room for one operator and one passenger
    • Seats tilt forward for ease of service and to keep dry during outdoor storage
  • Two cup holders are located within reach of the operator's station
  • Standard 12-V direct current (VDC) outlet is conveniently located on the instrument panel
  • Seven predrilled dash switch locations with snap out caps for various electrical accessories
  • Occupant protective structure (OPS) with three-point seat belts and passenger side grab handle located on front post
  • Start in gear or neutral position for quick starting. The service brake must be engaged to start.

The cargo box consists of a high-density polyethylene copolymer composite material that eliminates rust, dents, and reduces noise. This large, one-piece design has rounded inside corners to ensure material removal when tilted. The composite box is highly ribbed and supported with a welded, steel-ladder structure to ensure hard-driving performance and longevity. The three highly-styled exterior pieces are made of TPO for extra durability.

Cargo box tailgate
Tailgate handleTailgate handle
Tailgate pivot and removal featureTailgate pivot and removal feature
Removable lanyardsRemovable lanyards

The tailgate can be opened or removed for easier cleanout and to carry longer items. It features truck-like performance and can be operated with one hand.



The tailgate’s pivot point is made of hardened steel for durability and designed for tool-free removal. The standard lanyards can also be disconnected without tools to remove the tailgate for convenient loading and unloading tasks.

Cargo box tilt and removal
Integrated handle for manual cargo box tilt (both sides)Integrated handle for manual cargo box tilt (both sides)
Tilted cargo boxTilted cargo box

The cargo box ease of use is critical to performing tasks quickly and efficiently. Starting with the truck-style tailgate, the removal of content in this cargo box could not be easier. The manual release also functions as the lift lever, done in a smooth, one-step motion. It can even be tilted from both sides of the vehicle. To reduce the overall effort of lift, the pivot point of the cargo box is closer to the center. The combination of easy-to-use attributes makes this cargo box best-in-class.



For servicing the vehicle’s systems, the cargo box is easily removable. With the removal of two bolts, the cargo box can easily be detached from the vehicle frame.

Integrated tie-down points
Integrated tie-down point in cargo box bedIntegrated tie-down point in cargo box bed
Additional tie-down pointsAdditional tie-down points

The cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

  • Flip-up D-shaped rings in all four corners inside the cargo box bed
  • Multiple points along the edge of the cargo box side walls
  • Tie-down bars on either side of the cargo box with optional cargo box rail kit. This kit also provides a mounting system using accessories that possess the 25.4-mm (1-in.) quick clamp.
Optional accessories
Cargo box rail systemCargo box rail system
Box matBox mat
Cargo box power liftCargo box power lift
Cargo box wall extensions (shown on RSX)Cargo box wall extensions (shown on RSX)

Optional accessories for the cargo box include (see price pages or JDConfigurator for complete list):

  • Cargo box rail system
  • Cargo box mat
  • Cargo box power lift
  • Cargo box wall extensions
  • Spare tire rack
  • Bucket holder
Specifications
Length 82 cm (32.3 in.)
Width120.9 cm (47.6 in.)
Depth29.7 cm (11.7 in.)
Volume0.25 m3 (8.9 cu ft)
Weight capacity227 kg (500 lb)
Dump angle
Bed height (from ground)


45 degrees

76.3 cm (30 in.)



CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.

XUV front suspension detailXUV front suspension detail

To complement the comfortable operation station, the XUV560 and XUV590 Series are equipped with four-wheel independent suspension. This unique suspension set-up provides an unparalleled ride over challenging terrain and excellent handling through corners.



The engineering team, in collaboration with engineering firms that consult with Formula 1®, NASCAR®, and INDYCAR® teams, built a capable suspension system for class-leading operator comfort no matter what the terrain.

Dual A-arm front suspension features include:
  • Dual, wide arch A-arm design provides maximum front-wheel control, precise steering, and maximum ground clearance out to the wheel
  • 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
  • Adjustable coil-over shocks absorb the most demanding terrain
  • Solid anti-roll bar with fully rubber isolated connecting links and pivots is tuned to provide the most agile and predictable handling
  • Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
  • Increasing vehicle width during compression for additional stability.
  • High-strength ASTM 80-55-06 ductile cast-iron knuckle and upper A-arm to support the high stresses of the shocks, constant-velocity (CV) shaft, and wheels
  • Automotive-style, fully boxed and welded, high-strength steel, lower A-arms to minimize unsprung mass and maximize strength
  • Maintenance-free, rubber torsional A-arm pivots for long life and quiet operation
  • CV shaft protection from sticks that may puncture the rubber boot
  • Anti-dive front suspension geometry provides a solid platform for confident braking
  • Optimized steering geometry using ADAMS CAR simulation to minimize steering effort and maximize terrain feedback
XUV rear suspension detailXUV rear suspension detail
Independent rear suspension features include:
  • 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
  • Unique, independent rear-suspension design ensures a great ride and protection for the CV shafts
  • Adjustable coil-over shocks absorb the most demanding terrain
  • Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
  • Increasing vehicle width during compression for additional stability.
  • High-strength ASTM 80-55-06 ductile cast-iron knuckle, lower A-arm, and upper link to support the high stresses of the shocks, CV shaft, and wheels with the toughness to survive impacts from boulders
  • Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
Optional Fox™ Shocks are available to factory install

Exclusive aluminum-body, high-pressure monotube FOX racing shocks

  • Fully adjustable spring preload for different driving styles
  • High-pressure nitrogen gas is separated from the damping oil by an internal floating piston (IFP). The separation prevents aeration (frothing) and viscosity degradation of the oil which improves damping consistency and performance fade.
  • Pressure and heat generation in the monotube is less than a traditional twin-tube shock, allowing for better vehicle control in aggressive conditions.
  • The single aluminum shell of the monotube design allows for more efficient heat rejection and lower overall unsprung mass.
  • Mounting the shaft end of the shock to the suspension arm lowers the unsprung mass of the suspension system, leading to improved suspension response.

NASCAR is a trademark of NASCAR. INDYCAR is a trademark of Brickyard Trademarks Incorporated. Formula 1 is a trademark of Formula One Licensing BV, a Formula One Group Company.

Specifications


Compare the specifications of up to 4 models

Key Specs xuv590e-utility-vehicle
Current Model
Engine power23.8* kW
32 hp
Maximum traveling speed0-48 mph (0-77 kph) High Forward, 0-28 mph (0-45 kph) Low Forward, 0-22 mph (0-35 kph) Reverse
Cargo box dimensions82L x 120.9W x 29.7D (0.25 m3) cm
32.3L x 47.6W x 11.7D (8.9 ft3) in.
Cargo box capacity (weight)227 kg
500 lb
Towing capacity1500 lb
680 kg
Front suspensionFully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
Rear suspensionFully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Final driveHigh, Low, Neutral, Reverse Transaxle
Four wheel driveDash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Fuel capacity28 L
7.4 U.S. gal.
Engine
Type4-cycle gas, Inline-twin, Electronic Fuel Injection (EFI), Overhead Valves (OHV)
Displacement586 cc
Power23.8* kW
32 hp
Cooling systemLiquid cooled
Drivetrain
TransmissionContinuously Variable Transmission (CVT) with clutch enclosure
Final driveHigh, Low, Neutral, Reverse Transaxle
Four wheel driveDash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Traction assistPositive locking, mechanically actuated (hand lever operated) rear differential lock
Descent controlNot available
Maximum traveling speed0-48 mph (0-77 kph) High Forward, 0-28 mph (0-45 kph) Low Forward, 0-22 mph (0-35 kph) Reverse
Suspension
FrontFully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
RearFully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Brakes
Type196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers
Park brakeAutomotive-style foot-actuated mechanical park brake system
Tires / Wheels
Front25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Rear25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Dimensions / Capacities
Wheelbase1.86 m
72.8 in.
Dry weightWet weight (includes fuel/fluids): 644 kg
Wet weight (includes fuel/fluids): 1421 lb
Length2870 mm
113 in.
Width1435 mm
56.5 in.
Height1867 mm
73.5 in.
Tread centersFront: 1220 mm
Front: 48 in.
Rear: 1168 mm
Rear: 46 in.
Ground clearance267 mm minimum
10.5 in. minimum
Fuel capacity28 L
7.4 U.S. gal.
Cargo box dimensions82L x 120.9W x 29.7D (0.25 m3) cm
32.3L x 47.6W x 11.7D (8.9 ft3) in.
Cargo box capacity (weight)227 kg
500 lb
Payload capacity408 kg
900 lb
Towing capacity1500 lb
680 kg
HitchStandard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features
ColorGreen/Yellow; Olive/Black, Camo
Power steeringNot Available
Battery / Alternator / Power port340 CCA
65 amp @ 3400 rpm regulated
12 VDC standard outlet
InstrumentationDigital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time
Storage2 cupholders, sealed underhood storage, glovebox
SeatingBench seat
Headlights
